A High-Performance Lower-Cost System
Over 50 measurement functions
Supports Windows 2000/XP
High speed PCI or Firewire interface
User friendly panel-control measurement software
Multiple-window activation
CW and pulsed laser measurement
Pass/Fail setting and alarm
Both real-time and non-real time measurements

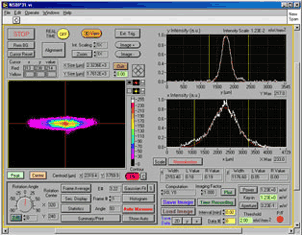

User friendly beam profiler panel
Beam Profiler System and Requirement
Monochrome Image Acquisition
Support Many Cameras for UV, Visible, and Near IR Beam Measurement
Windows 2000/XP
User Friendly Panel Measurement Control
Application features
Display:
- Image Zoom (1x, 2x, 3x, 4x, 5x, 8x, 10x, 16x, 32x)
- 2D Gray Scale Image
- 2D Color Contour
- Color Table
- 3D Gray Scale Display
- 3D Color Contour
- 3D Display Rotation and Tilt
- 3D Display Can be Made Transparent, Hidden, or With Solid Contour Lines
- 2D Image Rotation (Real-time and Non-Real-time)
- 2D Image Translation
- Secondary Display (for two-image comparison)
- Add Image Display
- Subtract Image Display
System I/O:
- Image Saving
- Imaging Loading
- CW Operation or External Trigger
- Save 2D Data
- Save X Profile Data
- Save Y Profile Data
- Time Recording of Key Beam Data to a File
- Print Panels and Results
|
|
Processing Features:
- Real-Time Background Image Subtraction (for Background Noise Removal)
- Cursor Controlled Profile Measurement
- Intensity Peak Identification and Following
- Beam Centroid Identification and Following
- Image Addition (can simulate multiple exposure feature)
- Image Subtraction
- Averaging of Frames
- Flexible Rotation Center
- Intensity Scaling
- DC Drift (to shift the intensity up or down)
- Beam Spot Alignment with Alarm
- 2-Set of Cursor for Contrast Determination
- Real-time and Non-Real-Time Profile Measurement
- Point-to-Point Measurement
- Flexible Cursor Measurement on X and Y Intensity Profiles
- Intensity Normalization
- Calibrated X and Y Scales
- Imaging Factor for X and Y Scale Adjustment
- Beam Width Measurement
- Ellipticity Determination
- Auto Rotation and Measurement
- Gaussian Fit with Results Summary
- Statistics on Measurement Data
- Size Measurement
- Power Measurement
- Flexible Aperture for Local Power Measurement
- Pass/Fail Setting and Alarm
- Line-to-Line Intensity Subtraction for Uniformity Comparision
- Intensity Distribution Histogram
- Time Recording (useful for recording beam profile parameters when operator is absent)
- Plot of Time Recorded Data
- Summary and Print for Reporting
Graphs
Applications:
- Can be used as general purpose laser beam profiler
- Can be used for non-Gaussian beam measurement (such as interference pattern measurement, Newton ring measurement, diffractive shaped beam measurement, fanout beam measurement, etc.)
- Can be used as a digital camera for image capturing and processing (using a c-mount lens)
- Can be used for beam alignment
- Can be used with Vidicon camera for IR beam measurement
- Can be attached to microscope for mask pattern size measurement, integrated circuit dimension measurement, and biomedical sample image size measurement
- Many more
|
