1-Micron ASE Broadband Light Source (Model NSL-10)

New Span's NSL-10 amplified spontaneous emission (ASE) broadband light source is primarily used for passive fiber-optic component testing, especially for dense wavelength division multiplexing (DWDM) components; but it can find other applications such as spectroscopy, fiber sensing, and optical coherence tomography (OCT), especially in high-resolution ophthalmic and soft tissue imaging. This desk/bench top instrument offers low-cost high-performance turn-key operation with additional safety features such as laser enabled switch incorporated in the instrument unit.

Optical Specifications:

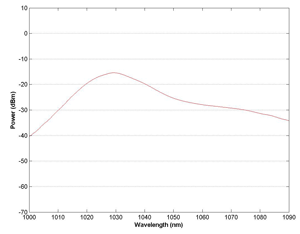

Spectral Range (nm) 1000 to 1090
Maximum Output Power (dBm) 0
Output Power Stability (dB) < ±0.25 after 1hr warm-up
Fiber Output Connector FC/PC
General Specifications:
Operating Temperature 0 to +40° C
Storage Temperature -40 to +80° C
Temperature Sensitivity Athermal
Display 3½ digit LCD
Power Requirements 85 to 264 VAC, 47 to 63 Hz
Power Consumption (W) ~3
Dimension (in) 7.3(L) x 7.5(W) x 3.6(H)
Weight (lb) ~4
Safety Feature Laser Enable Switch
Price (USD) $3,800.00
