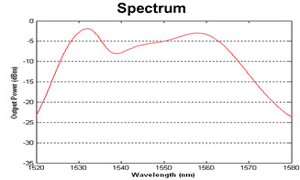

Products Thin Film Measurement OCT OCT Spectrometer/Scanner Laser Beam Profiler Flat-Top Beam Shaper Optics Education Kits Light Sources Technologies Technology Summary	Products » Light Sources C-Band ASE Broadband Light Source (Model NSL-15) New Span's NSL-15 amplified spontaneous emission (ASE) broadband light source is primarily used for passive fiber-optic component testing, especially for dense wavelength division multiplexing (DWDM) components; but it can find other applications such as spectroscopy, fiber sensing, and optical coherence tomography (OCT). This desk/bench top instrument offers low-cost high-performance turn-key operation with additional safety features such as laser enabled switch incorporated in the instrument unit. Spectral flattened version is also available. Optical Specifications: Spectral Range (nm) 1525 to 1565 Maximum Output Power (dBm) +15 Spectral Power Density (dBm/nm) > -10 Output Power Stability (dB) < ±0.25 after 1hr warm-up Output Polarization Unpolarized Return Loss (dB) -50 Fiber Output Connector FC/PC General Specifications: Operating Temperature 0 to +40° C Storage Temperature -40 to +80° C Temperature Sensitivity Athermal Display 3½ digit LCD Power Requirements 85 to 264 VAC, 47 to 63 Hz Power Consumption (W) ~3 Dimension (in) 7.3(L) x 7.5(W) x 3.6(H) Weight (lb) ~4 Safety Feature Laser Enable Switch Price (USD) $4,000.00
