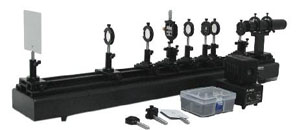

Education Kits » EWSY-1 Lens Aberration and Fourier Optics Kit


There six basic optical aberrations affecting the ideal performance in an optical system, which are chromatic aberration, spherical aberration, coma, distortion, curvature of field and astigmatism. Students will be familiar with these aberrations after using this kit Optical lens can perform the Fourier transform to light field on object plane. Various spatial filtering techniques are used in the reconstruction of the filtered images based on Abbe�s theory of image formation. Students will be enhanced their knowledge of Fourier optics and spatial filtering through the proposed experiments.

  1. Lens Aberration Demo
  2. Fourier Optics Processing
  3. Easy Operation
  4. Cost Effective
Components List
Optical Rail 1M 1 set
Silding Base LH30 5
Aperture Adjustable Holder SZ-05 1
Two-axis Tiltable Holder SZ-07 2
Plate Holder SZ-12 1
White Screen SZ-13 1
Object Screen SZ-14 1
DMV Holder SZ-38 1
Lens Group Holder SZ-25 1
White light source 1
Lenses (f=15,50,150,190nm) 1each
Mirror 1each
Objective 20x 1
Reticle 1/10mm 1
Eye Piece 10x 1
Ruler SZ-31 1
Project Slide 1
Millimeter Ruler 1:7mm 1
